Power Range: 10 HP to 100 HP
Stages: 3 Stage to 15 Stage (modular setup)
Borewell Outer Diameter: 200 mm (8-inch)
Power Supply: THREE PHASE(200-415V)

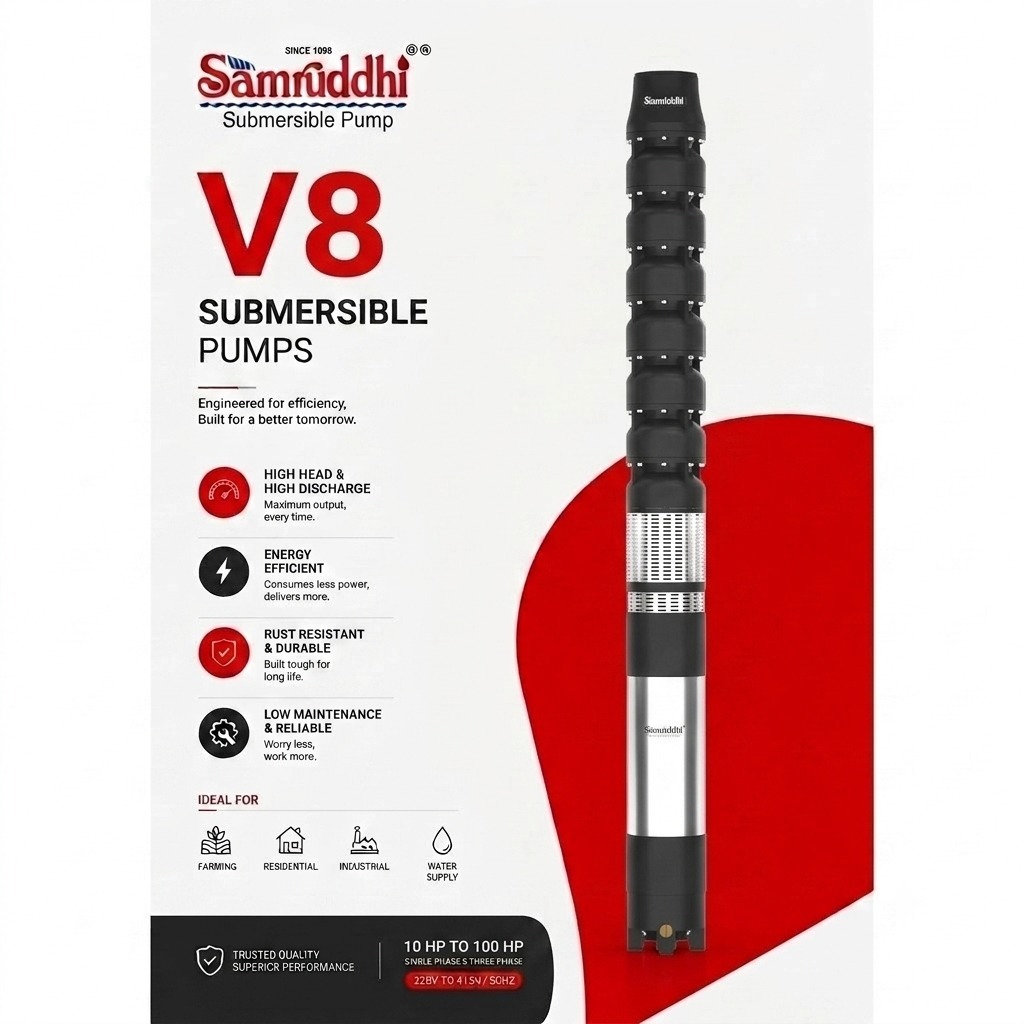

V8 Submersible Pump — Frequently Asked Questions
1. What is a V8 Submersible Pump?
A V8 submersible pump is an 8-inch high-capacity water pump designed to operate fully submerged underground in deep borewells, rivers, or open wells to lift large volumes of water.
2. What power range and applications is it suitable for?
- Power Range: Typically available from 10 HP up to 80+ HP.
- Applications: Ideal for heavy agricultural irrigation, large farms, industrial water supply, community water schemes, and high-discharge drainage.
3. What is the difference between Radial Flow and Mixed Flow V8 pumps?
- Radial Flow: Designed for high head (depth) and moderate water discharge. Best for very deep borewells.
- Mixed Flow: Designed for high water discharge (volume) at low to medium heads. Best for high-water-yield wells and flood irrigation.
4. What type of power supply does a V8 pump require?
V8 pumps operate on a 3-phase 415V, 50 Hz AC supply due to their heavy-duty motor power requirements.
5. Why choose a V8 pump over a V6 pump?
V8 pumps feature larger impeller diameters and heavier motor construction, enabling them to deliver significantly higher water discharge rates and handle deeper heads than standard V6 pumps.
6. What maintenance does a V8 Submersible Pump need?
Submersible pumps are self-lubricating (water-filled) and virtually maintenance-free. Ensure correct control panel settings (overload/dry-run protection) and clean, sand-free water for maximum motor and impeller lifespan.
